AirMini Patient Setup Usage Video

Setting up your machine

• Plug the power supply unit into your machine and then into the power outlet.
• Connect the grey end of the air tubing to your machine.

Adding optional humidification

(for AirFit N20 or AirFit P10 for AirMini only):

• To use the optional HumidX or HumidX, twist open the connector.
• Insert the HumidX or HumidX Plus them inside, with the blue or grey side facing down towards the tube.
• Close the connector by twisting its ends back together until they lock into place.

Connecting your machine and smart device

• Ensure you have the latest version of the AirMini app installed on your smart device. If not, download it from the App Store or Google Play depending on your device.
• Also ensure Bluetooth is enabled on your smart device. Refer to your smart device’s user guide for instructions as needed.
• Open the AirMini app and you’ll be greeted with a welcome screen.
• Accept ResMed's Terms and Conditions and Privacy Policy to continue.
• When prompted by the AirMini app, press the Bluetooth button on your AirMini machine.
• When the light on your machine flashes blue, Bluetooth is enabled and it is ready to connect.
• On the smart device, tap Connect.
• Wait until your machine appears in the accessory selection list.
• Select your machine from the list to connect.

Authenticating your device

• The first time you pair your machine with your smart device, you will need to authenticate it by entering the four-digit key located on the bottom of your machine.
• When successfully connected, the Bluetooth connection icon will appear in the top right corner of the screen.

Starting therapy on the Sleep screen

• Enter the Sleep screen by pressing on Sleep on the Navigation tab.
• The Sleep screen is split into two tabs, Therapy and Mask Fit. You can toggle between the Therapy screen, to access comfort settings, and the Mask Fit screen, to check for air leaks around your mask.
• To start therapy, press start on your Therapy screen.
• To stop therapy, press stop from the same menu.

Adjusting comfort settings

• Enter the Sleep screen and click on options in the Therapy screen.
• Tap the setting you wish to adjust.
• Use the spinner or switches to select the required setting.
• Do this process for as many settings as needed.

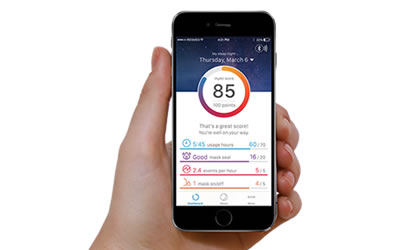

The Dashboard

• Enter your Dashboard screen by pressing on Dashboard in the Navigation tab. If your AirMini machine is connected to the AirMini app, the Dashboard will provide you summary data and a sleep score for your recent therapy session.
• You can also access previous days of sleep score information by clicking on the dropdown arrow next to the current date.
• Tap on any therapy session to view your sleep score and sleep swadata for that date.

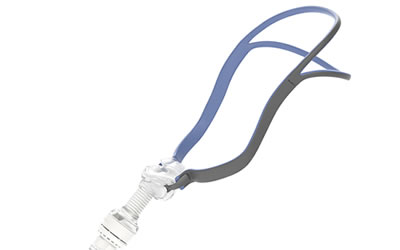

AirFit P10 for AirMini Usage Videos

Maintenance and inspection

• Regular inspection of your mask and its components for signs of damage is important to maintain optimal performance of your mask.
• For a thorough inspection, you should first disassemble the mask as per instructions in your user guide and inspect each part individually.

  Check the mask frame and tube


• Examine both the inside and outside of the mask tube for any holes or tears. If damage is found, the frame will need to be replaced.
• Hold the frame and gently pull on each arm of your mask to ensure they are firmly attached and will provide good support.

  Checking the nasal pillows


• Examine your nasal pillows inside and out for general wear and tear, blockages, damage and deformed pillows.
• A light squeeze on the sides of deformed pillows can help bring them back to shape. Replace them if they are damaged or no longer fit well.

  Checking the headgear


• Hold the headgear in one hand and run your other hand along its length while stretching at various points to check for tears and its elasticity.
• If the headgear is torn, lost its elasticity or has damaged seams, you should replace it.

These instructions are for general information purpose only. For full details consult the user guide.

Disassembly

For N20 users

• Disconnect the connector from the mask by pressing on its side buttons and pulling away.
• Disconnect the vent module from the AirMini tubing by twisting them away from each other.
• Disconnect the vent module from the mask tube by twisting them away from each other.
• If HumidX or HumidX Plus was used, remove it from the vent module.

For F20 users

• Disconnect the connector from the mask by pressing on its side buttons and pulling away.
• Disconnect the F20 connector from the AirMini tubing by twisting them away from each other.

For P10 users

• Disconnect the vent module from the AirMini tubing by twisting them away from each other.
• Disconnect the vent module from the mask tube by twisting them away from each other.
• If HumidX or HumidX Plus was used, remove it from the vent module.

AirMini

• Disconnect the AirMini tubing by pressing on the side of the grey cuff and pulling away.
• Unplug the power supply unit from the power outlet and the machine.

Daily cleaning

For N20 users

Note: Do not wash or wet the HumidX / HumidX Plus. When not in use, store in a clean and dry place.

• Clean and check the N20 connector by hand daily. Never wash it using a dishwasher or washing machine.
• Remove the HumidX before proceeding with cleaning.
• Wash the connector in warm water (~30°C or 86°F) and mild liquid detergent.
• Clean the connector using a soft bristle brush, with particular attention paid to the vent holes on the inside.
• Rinse well under running water, and then shake to remove excess water.
• Air dry out of direct sunlight, and check for dirt or dust before use.

For F20 users

• Clean and check the F20 connector by hand daily. Never wash it using a dishwasher or washing machine.
• Wash the connector in warm water (~30°C or 86°F) and mild liquid detergent.
• Clean the connector using a soft bristle brush, with particular attention paid to the vent holes on the outside.
• Rinse well under running water, and then shake to remove excess water.
• Air dry out of direct sunlight, and check for dirt or dust before use.

Weekly cleaning

AirMini tubing

• Clean and check the AirMini tubing by hand weekly. Never wash it in a dishwasher or washing machine.
• Separate tubing from AcitveAir vent connector.
• Soak and wash the tubing in warm water (~30°C or 86°F) and mild liquid detergent.
• Rinse well inside and out under running water.
• Hang the tubing so that each end can drain, and leave it to air dry out of direct sunlight.
• Clean the AirMini by wiping down each side of its exterior carefully with a dry cloth.

Inspection and replenishment

For F20 users

• Check the F20 connector daily for signs of damage or blockages caused by dirt and dust.
• The connector should be replaced at least every six months or if there are signs of damage.

For N20 users

• Check the N20 connector daily for signs of damage or blockages caused by dirt and dust.
• The connector should be replaced at least every six months or if there are signs of damage.

AirMini tubing

• Check the AirMini tubing daily for any holes, tears or cracks.
• The tubing should be replaced at least every six months or if there are signs of damage.

AirMini air filter

• Check the AirMini air filter for any holes, tears, cracks, or blockages caused by dirt or dust.
• The air filter should be replaced at least every six months or if there are signs of damage. It cannot be washed.
• To change the air filter, slide the air filter cover off and replace the old air filter with a new one.
• Attach the air filter cover on again, and ensure it is fitted at all times to prevent water and dust from entering the machine.

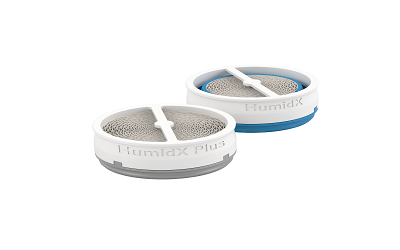

HumidX and HumidX Plus

• Check your HumidX or HumidX Plus daily for signs of damage or blockages caused by dirt and dust. They cannot be washed.
• HumidX and HumidX Plus must be replaced within 30 days after opening the packaging or if there are signs of damage.

Humidification

• To insert the optional HumidX / HumidX Plus, for N20 or AirFit P10 for AirMini users, open the connector by gently twisting.
• Grip the HumidX / HumidX Plus at the edges, with blue / grey side facing down towards the tube, and place it inside.
• Close the connector by twisting its ends back together until they lock into place.
• HumidX and HumidX Plus must be discarded and replaced within 30 days after opening the HumidX / HumidX Plus packaging.
